FRAME & CDL PRE-TRIP · SEPTEMBER 20, 2026Commercial Truck Frame Inspection in 2026: Cracks, Crossmembers, Welds, and Holes
The frame is the structural backbone beneath a commercial vehicle. Its rails carry the cab, powertrain, suspension, fifth wheel or body, and cargo loads; crossmembers keep the rails related to one another; brackets and fasteners transfer forces between those systems. A frame defect can therefore show up as more than a visible crack. Sagging, looseness, a shifted mount, an unauthorized notch, a broken weld, a damaged cargo floor, or severe corrosion can change how the vehicle tracks, supports weight, couples, and responds in a turn.
A useful frame inspection connects three different layers: the federal equipment standard, the vehicle-inspection language in the state CDL manual, and the manufacturer’s repair or upfit instructions. A driver should recognize and report evidence. Qualified personnel determine the cause, measure the damage, and decide whether a repair is permitted. This guide keeps those roles separate.
The federal rule in plain language
49 CFR 393.201 is concise but specific. It does not say every modification is forbidden, and it does not let a driver judge structural work by appearance alone.
| Federal requirement | What it means during inspection | Important qualification |
|---|
| Frame or chassis may not be cracked, loose, sagging, or broken | Look along both rails, crossmembers, brackets, and visible attachment areas for damage or movement | Report a suspected defect; do not diagnose remaining strength from appearance |
| Cab or body mounting bolts and brackets may not be loose, broken, or missing | Check visible mounts, brackets, cushions, and fasteners for condition and security | Do not tighten or substitute hardware unless trained and authorized |
| Rail flanges between the axles may not be bent, cut, or notched | Inspect the top and bottom edges of the rail for altered or damaged sections | The rule allows what the vehicle manufacturer specifies |
| Parts and accessories may not be welded to the frame or chassis | Treat unfamiliar welded brackets or attachments as items requiring verification | Work performed according to manufacturer recommendations is permitted |
| Welded repairs must follow manufacturer recommendations | A neat bead alone does not prove a repair is acceptable | Documentation and the correct approved procedure matter |
| Top or bottom rail flanges may not have drilled holes | Look for added holes, plugs, or hardware through either flange | Again, the manufacturer may specify an allowed hole |
Carriers also have a broader maintenance duty under 49 CFR 396.3: vehicles subject to the rule must be systematically inspected, repaired, and maintained, and their parts and accessories must be in safe and proper operating condition. A pre-trip observation supports that system; it does not replace scheduled inspection or structural evaluation.
Know the parts you are describing
A typical heavy-truck rail is a channel shape. The broad vertical section is the web; the horizontal top and bottom edges are the flanges. Crossmembers span between the rails. Brackets attach suspensions, tanks, steps, exhaust components, cab mounts, bodies, and coupling equipment. Actual designs vary, including reinforced, doubled, sleeved, boxed, or purpose-built sections.
| Area | Normal role | What to notice |
|---|
| Frame-rail web | Carries shear and provides attachment area engineered for the chassis | Cracks, buckling, distortion, unexplained holes, loose hardware, contact marks, or severe corrosion |
| Top and bottom flanges | Resist major bending forces | Bends, cuts, notches, drilled holes, crushed edges, or unauthorized attachments |
| Crossmembers | Hold rail spacing and support mounted systems | Cracks, broken welds, bends, looseness, missing fasteners, or shifted connections |
| Cab and body mounts | Secure the cab, van body, dump body, bus body, or other structure | Loose, broken, or missing brackets and bolts; torn cushions; shifted mounting points |
| Trailer frame and cargo floor | Support the trailer body, running gear, coupling, and cargo | Cracks, breaks, holes, damaged crossmembers, floor damage, or insecure tandem locking parts |
Do not assume a hole in the web is acceptable merely because the federal paragraph specifically names top and bottom flanges. Chassis manufacturers control approved hole locations, diameters, spacing, edge distance, reinforcement, fasteners, and prohibited zones. An unfamiliar hole anywhere deserves verification against the applicable manufacturer guidance.
Start with a safe inspection setup
Park on firm, level ground when possible. Secure the vehicle according to the truck, carrier, training site, and state-test procedure. Set the parking brakes, place the transmission as directed, shut down when appropriate, and use wheel chocks when required. Wear high-visibility clothing when exposed to yard traffic and keep a clear route away from moving vehicles.

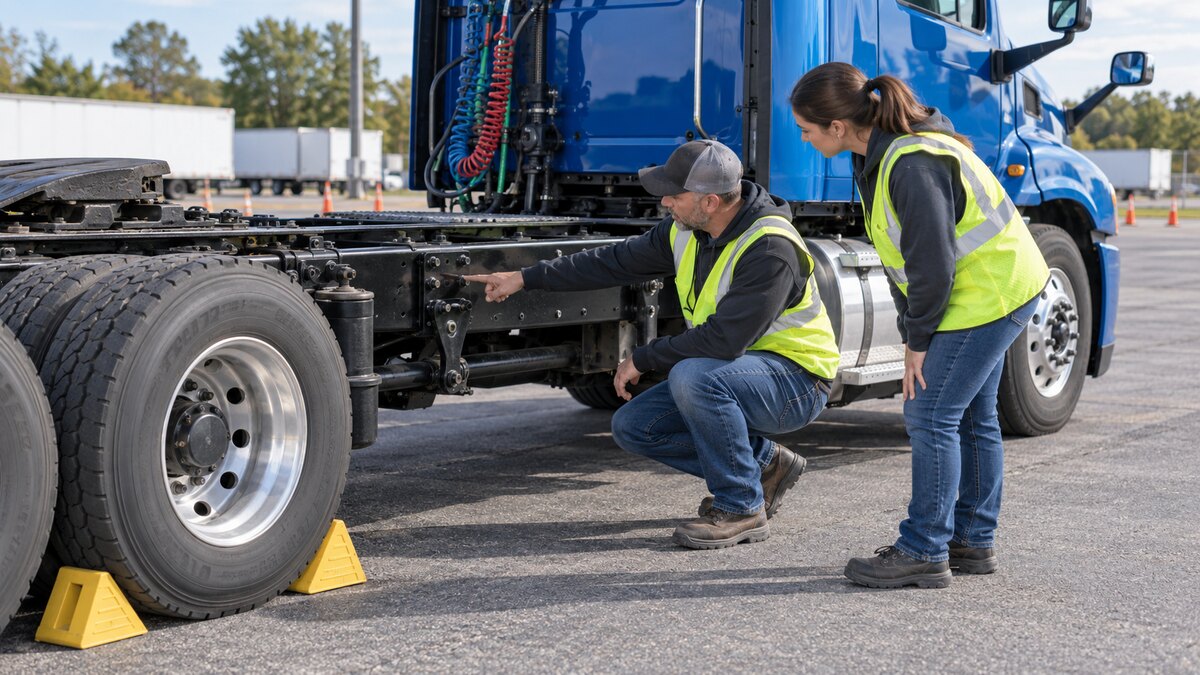

Inspect from the sides and from other positions that do not place you in a crush zone. Never crawl beneath an unsecured vehicle. Do not rely on air suspension, a hydraulic body, landing gear, or a jack as the only support. If a raised body, cab, or other component is necessary for maintenance access, qualified personnel must use the manufacturer’s blocking and support procedure. A CDL walk-around does not justify entering a hazardous space.
1. Take a wide view before studying details
Begin several steps away. Compare the rails and body line from both sides. Look for an unexplained lean, sag, twist, shifted body, uneven cab gap, abnormal wheel position, or a component touching the frame. Observe whether the fifth wheel, body, tanks, battery box, exhaust, steps, and suspension attachments appear aligned and secure.
A lean does not prove the frame is bent. Tire pressure, pavement slope, cargo distribution, suspension height, spring damage, or body mounting can create a similar appearance. Record the observation without jumping to a conclusion. The next inspection should connect the visual clue with specific rails, mounts, suspension parts, wheels, or load conditions.
2. Follow each rail in a repeatable direction
Use a flashlight and inspect the visible length of one rail from front to rear, then repeat on the opposite side. Scan the top edge, web, bottom edge, and areas around brackets or changes in section. Look at both sides of a crossmember connection when accessible. Road grime can hide fine evidence, but scraping, grinding, wire-brushing, or pressure-washing during a roadside check can also erase clues or expose the driver to hazards; cleaning for detailed inspection should follow the maintenance procedure.
Pay special attention near high-load transitions: suspension hangers, engine and transmission supports, steering-gear mounts, fifth-wheel and body subframes, lift-axle brackets, crossmember ends, towing attachments, and locations where stiffness changes. These areas do not automatically fail; they simply deserve an unhurried look.
3. Learn the clues that can lead to a crack
A crack may appear as a sharp line through paint or metal, a rusty line from a freshly opened surface, a line that continues from a hole or weld toe, or a gap that changes across a loaded connection. Fretting dust, polished metal, displaced paint, or a witness mark around a fastener can suggest movement. Repeated contact can leave a bright area where components should not touch.
Not every line is a crack. Factory seams, weld edges, scratches, paint runs, scale boundaries, and shadows can look similar. Change the light angle and view the area from another safe position. Do not strike, pry, drill, grind, dye-test, or magnetically test the frame unless qualified and authorized. Photograph the location with a wider reference view, mark it only under company policy, and send the evidence to maintenance.
4. Inspect crossmembers and their connections
Crossmembers should not be cracked, broken, bent, loose, or missing. Look at the member itself and at the flange, bracket, rivet, bolt, or approved weld that connects it to the rail. A crossmember can be damaged even when its center looks straight; cracks often begin near a fastener, corner, end connection, hole, or prior repair.
Check for loose or missing fasteners, elongated holes, shiny movement marks, red rust around a rivet or bolt head, separated brackets, and a gap where connected surfaces should sit together. Never “test” a structural fastener with an ordinary wrench. Correct torque, replacement, rivet work, and hole evaluation are maintenance tasks governed by the vehicle and repair instructions.
5. Check cab, body, and equipment mounts
Section 393.201 specifically requires the bolts and brackets securing the cab or body to the frame to be present and serviceable. Inspect what can be seen safely: mounting brackets, bolts, nuts, cushions, isolators, retainers, body sills, and attachment points. Look for broken metal, torn rubber, missing hardware, shifted washers, rust trails, or evidence that the cab or body has moved.
Mounted accessories matter too. Tanks, steps, battery boxes, exhaust supports, toolboxes, aerodynamic panels, and other equipment must not create damaging contact or rely on an unexplained frame alteration. If a bracket is welded to the chassis, the key question is not whether the bead looks smooth; it is whether that attachment follows the chassis manufacturer’s recommendation.
6. Treat cuts, notches, holes, and welds precisely
The top and bottom flanges between the axles are especially important because they carry large bending stresses. The federal rule prohibits bending, cutting, and notching there except as the manufacturer specifies. It also prohibits drilling those flanges except as specified by the manufacturer. Look for added hardware passing through a flange, plugged holes, flame-cut edges, grinding, or a notch made for clearance.
Welding is similarly nuanced. Section 393.201 allows parts or accessories welded to the frame and welded frame repairs when done according to manufacturer recommendations. That is why “frames can never be welded” is inaccurate—and why “the weld looks good” is inadequate. Material type, heat input, preparation, reinforcement, location, sequence, and post-repair inspection can all matter. Drivers should identify and report suspect work, not approve or repair it.
| Observation | Do not assume | Better response |
|---|
| Hole through a rail web | “Only flange holes are prohibited, so this is fine.” | Verify the hole and attachment against the chassis manufacturer’s upfitter guidance |
| Hole through a top or bottom flange | “It came with a bolt, so it must be approved.” | Report it and confirm that the manufacturer specified that location and method |
| Welded bracket | “All frame welding is illegal.” | Confirm that the attachment follows manufacturer recommendations |
| Welded crack repair | “A smooth bead means the repair is safe.” | Review the approved repair procedure and inspection records with qualified personnel |
| Notch near an axle or mounted system | “The component needed clearance, so it is acceptable.” | Stop guessing and verify the original design or documented manufacturer authorization |
7. Read rust as evidence, not a percentage
Surface discoloration differs from thick scale, flaking, swelling between layered members, deep pitting, perforation, or visible loss of section. Rust streaks around a fastener can indicate moisture or movement; a straight rusty line may highlight an opening crack. Packed debris and trapped moisture around doubles, brackets, or crossmembers can conceal damage.
The federal frame paragraph does not provide a universal “allowed rust percentage” or a depth that a driver can estimate by eye. Do not make one up. Report the location, area, visible flaking or perforation, nearby fasteners, and whether the metal shape has changed. Measuring remaining thickness or deciding whether corrosion affects strength belongs to qualified maintenance using an accepted procedure.

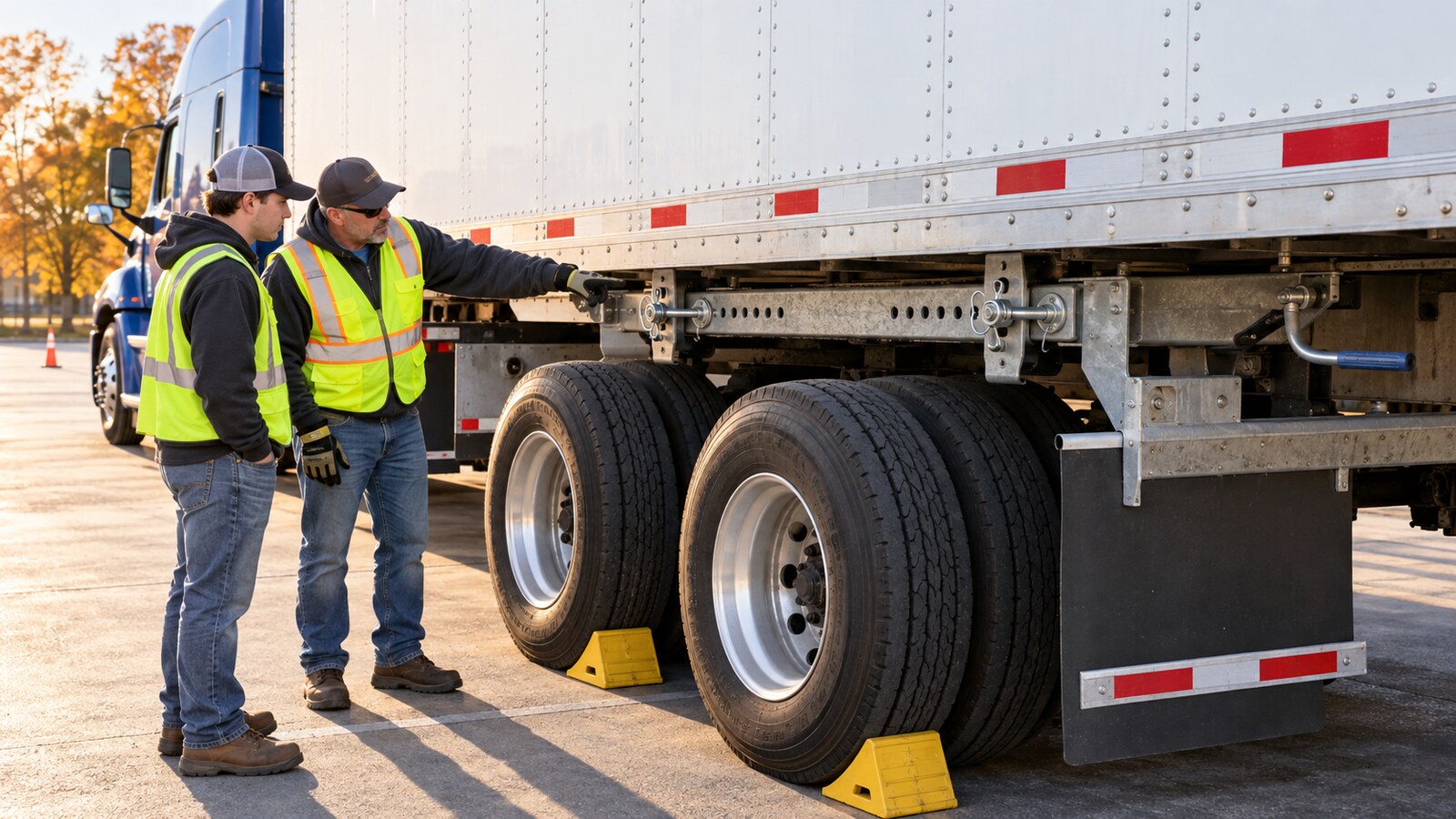

8. Include the trailer frame, floor, and tandem area
The AAMVA-based Commercial Driver’s License Manual tells applicants to inspect frame members—including the trailer—for cracks, broken welds, holes, or other damage. It also calls for checking the cargo area and floor for cracks, breaks, holes, or other damage that could permit cargo loss. On a sliding tandem, the release lever should be secured and the locking pins fully engaged when applicable.

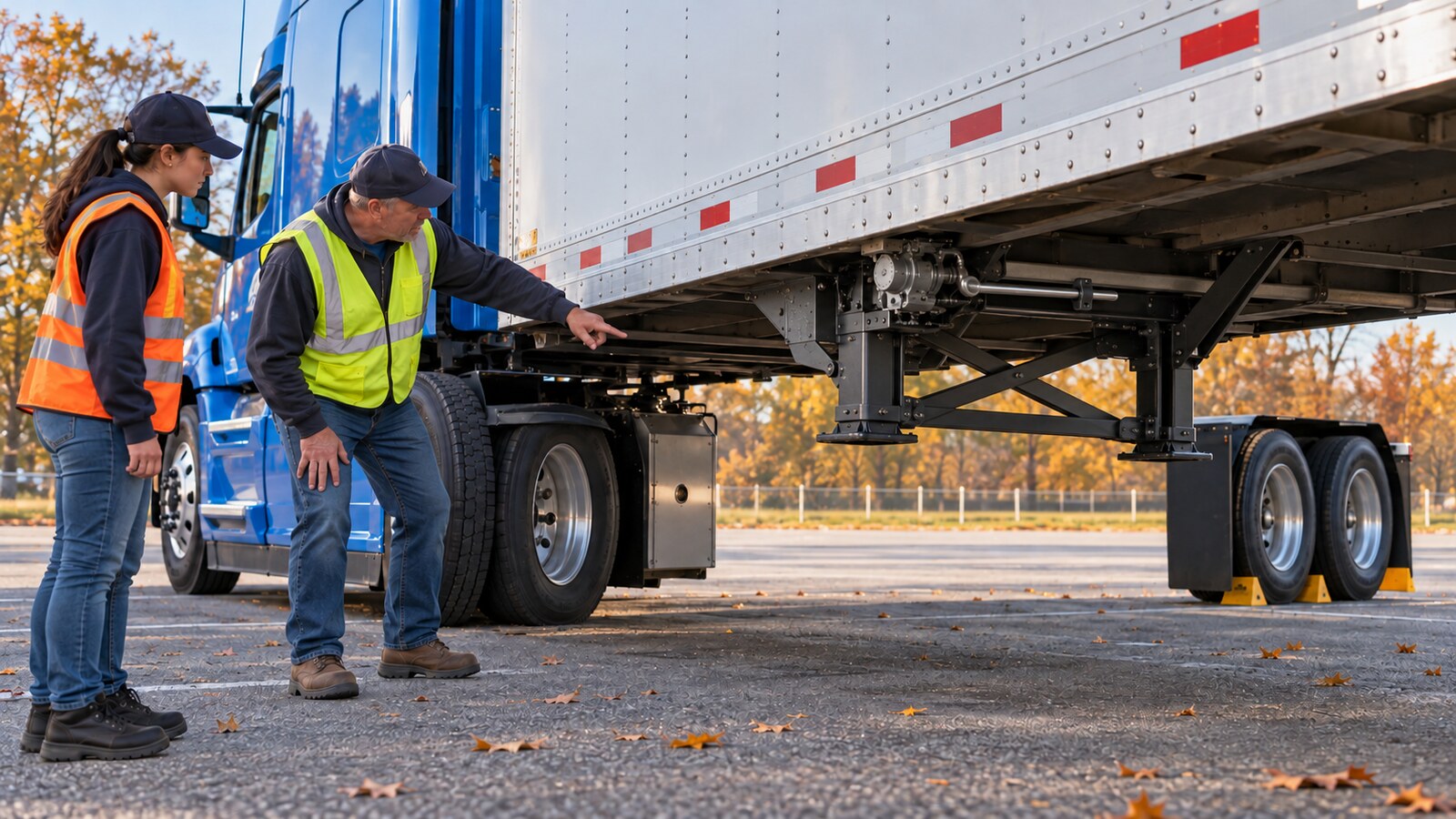

Inspect trailer rails and crossmembers from safe positions, including visible areas near landing gear, suspension hangers, slider rails, rear impact structure, coupling supports, and body mounts. Look inside the cargo area when authorized and safe. A damaged floor is not merely cosmetic if it cannot support or contain the cargo. Keep the visit to the cargo area within loading-dock, fall-protection, and securement procedures.
9. Reinspect after impact, towing, upfitting, or unusual loading
A curb strike, collision, hard coupling event, tow or recovery operation, off-road contact, overloaded body, shifted load, or installation of new equipment can introduce new evidence. Compare cab and body gaps, bracket positions, rail contact points, crossmembers, suspension mounts, coupling structure, and nearby hoses or wiring. Ask for repair or upfit documentation when the condition is unfamiliar.
Frame inspection also connects with the suspension inspection, wheel and rim inspection, fifth-wheel coupling inspection, and cargo-securement guide. A structural clue should prompt a careful look at the systems that attach to or load that part of the frame.
Driver decision versus structural diagnosis
| Driver or CDL applicant | Qualified maintenance or engineering |
|---|
| Safely inspect visible rails, crossmembers, mounts, fasteners, trailer frame, and floor | Clean, measure, and perform approved nondestructive examination |
| Describe the exact location and evidence without guessing at the cause | Determine material, original design, crack extent, deformation, and remaining section |
| Report cracks, looseness, sagging, broken members, suspicious welds, holes, notches, and serious corrosion | Confirm manufacturer instructions and decide whether repair or replacement is permitted |
| Keep the vehicle out of service when company procedure or a responsible authority determines it is unsafe | Perform documented repairs with approved materials, process, hardware, and post-repair inspection |
Do not crawl under, hammer, heat, drill, weld, grind, straighten, plate, tighten, or paint over a suspected frame defect simply to finish a route. Cosmetic covering can hide evidence and an improvised repair can concentrate stress elsewhere. Secure the vehicle, preserve the evidence, and use the carrier’s defect-reporting and maintenance process.
Use clear CDL pre-trip language
| Weak statement | Stronger callout |
|---|
| “The frame looks good.” | “The visible frame rails and crossmembers are not cracked, bent, broken, loose, or damaged.” |
| “The mounts are okay.” | “Visible cab and body mounting brackets and fasteners are present, secure, and not loose, broken, or missing.” |
| “There are no illegal holes.” | “I see no unexplained cuts, notches, or holes in the rail flanges; unfamiliar modifications require manufacturer verification.” |
| “The trailer is fine.” | “The visible trailer frame and crossmembers are not cracked or damaged, the cargo floor has no holes or breaks that could allow cargo loss, and the tandem release and pins are secure when equipped.” |
On test day, point to the actual components and follow the current manual and examiner instructions for the licensing state. The CDL manual teaches what to identify; it does not authorize a candidate to approve a structural modification. In daily work, record the vehicle, side, axle or crossmember reference, exact component, evidence, photograph, and whether the condition changed since the previous inspection.
Frequently asked questions
Is any crack allowed in a commercial truck frame?
49 CFR 393.201 says the frame or chassis may not be cracked, loose, sagging, or broken. Report any suspected crack and let qualified personnel determine its extent and the manufacturer-approved response.
Can accessories be welded to a commercial truck frame?
Not automatically. Federal rules allow welded attachments and frame repairs when they follow the vehicle manufacturer’s recommendations. Appearance alone cannot establish approval.
Can holes be drilled in commercial truck frame rails?
Top and bottom flanges may not have drilled holes except as the manufacturer specifies. Do not assume an unexplained web hole is acceptable; verify location, size, spacing, and attachment method against manufacturer guidance.
Does rust automatically fail a commercial truck frame inspection?
The federal frame rule gives no universal rust percentage. Surface discoloration differs from scale, section loss, swelling, perforation, or corrosion concealing a crack. Report significant corrosion for qualified evaluation.
What should a CDL applicant say when inspecting the frame?
Identify the rails and crossmembers and explain that they are not cracked, bent, broken, loose, or damaged. Include visible cab or body mounts and fasteners, plus the trailer frame, cargo floor, and tandem locking parts when applicable.
The bottom line
Inspect the frame as a connected structure: begin with alignment, trace both rails, study the flanges and web, examine crossmember ends, check cab and body mounts, include the trailer and cargo floor, and report any evidence of cracking, looseness, sagging, breakage, alteration, movement, or meaningful section loss. Be precise about the federal exceptions—manufacturer specifications and recommendations matter for flange work, holes, attachments, and welded repairs.
Use the ELDT Theory Practice Center and CDL Practice Test Center to reinforce inspection knowledge, and complete required training with an FMCSA-compliant provider listed on the Training Provider Registry. Study aids do not replace the current state CDL manual, supervised behind-the-wheel training, manufacturer instructions, or a carrier’s maintenance program.
Authoritative resources checked September 20, 2026: 49 CFR 393.201—Frames, 49 CFR 396.3—Inspection, Repair, and Maintenance, the AAMVA-based Commercial Driver’s License Manual, and FMCSA’s CDL manual directory. The eCFR displayed Title 49 as current through September 17, 2026.
